Mô tả

Digital Audio Processor	DSP processing
Analog input: 4*XLR balanced	2 x MARANI® DSP, 24×32-bit filter processing, 54-bit accumulation register,
Analog output: 8*XLR balanced	96-bit precision intermediate data operation result
Digital input: 2 x AES/EBU; input sensitivity 0dBu	Frequency response
SNR: >110dBA	20Hz～20kHz；-0.5dBu at 20Hz and 20kHz
Delay	AD&DA conversion:24bit-96kHz
Adjustable delay of up to 480ms per input, step accuracy of 10.4us;	Dimensions(HWD): 44 x 482 x 229 mm
adjustable delay of up to 340ms per output, step accuracy of 20.8us	Net Weight: 3.5 kg

Thông số kỹ thuật

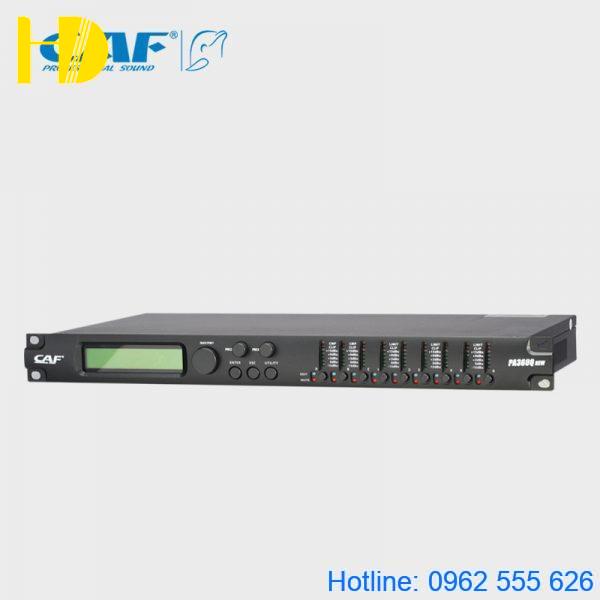

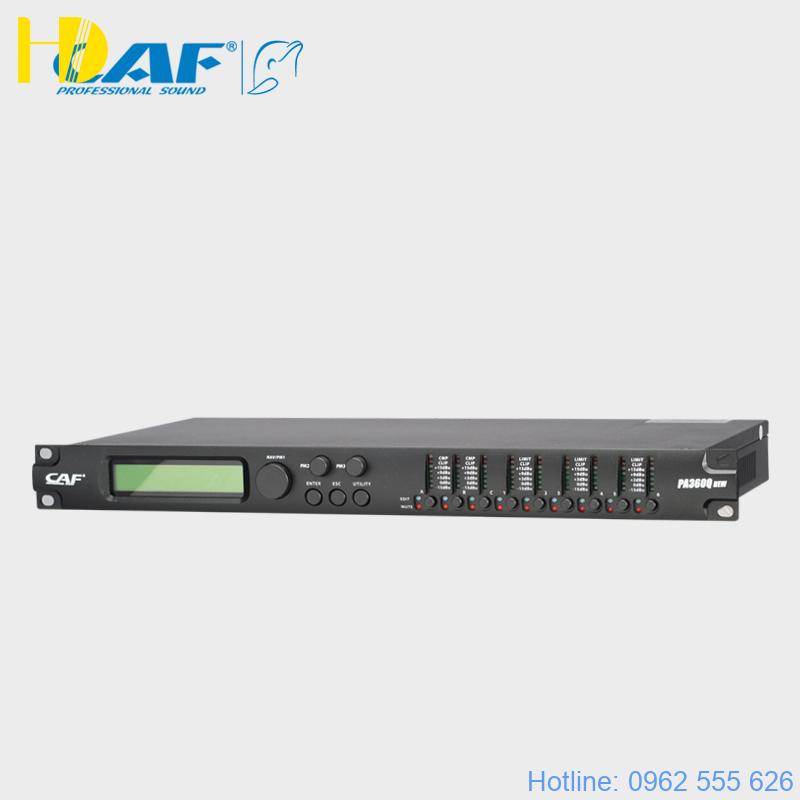

Product model:	PA360Q NEW
Analog input:	3*XLR balanced
Analog output:	6*XLR balanced
SNR:	>110dBA
Delay:	Adjustable delay of up to 310ms per input, adjustable delay of up to 270ms per output, step accuracy of 10.4us
DSP Processing:	24×32 bit filtering, 54-bit accumulation register, 96-bit precision intermediate data operation result
Frequency Response:	20Hz to 20kHz; -0.5dBu at 20Hz and 20kHz
AD&DA Conversion:	24bit-96kHz
Product size:	482 W X 44 H X 229D mm
Weight:	3.5 kg
